Donut wing, stable underwater
The oval air cell forms a continuous loop, so the wing is streamlined and very stable underwater, with no dramatic shift of air from left to right. Apeks shapes it so the cylinder nests deep inside.

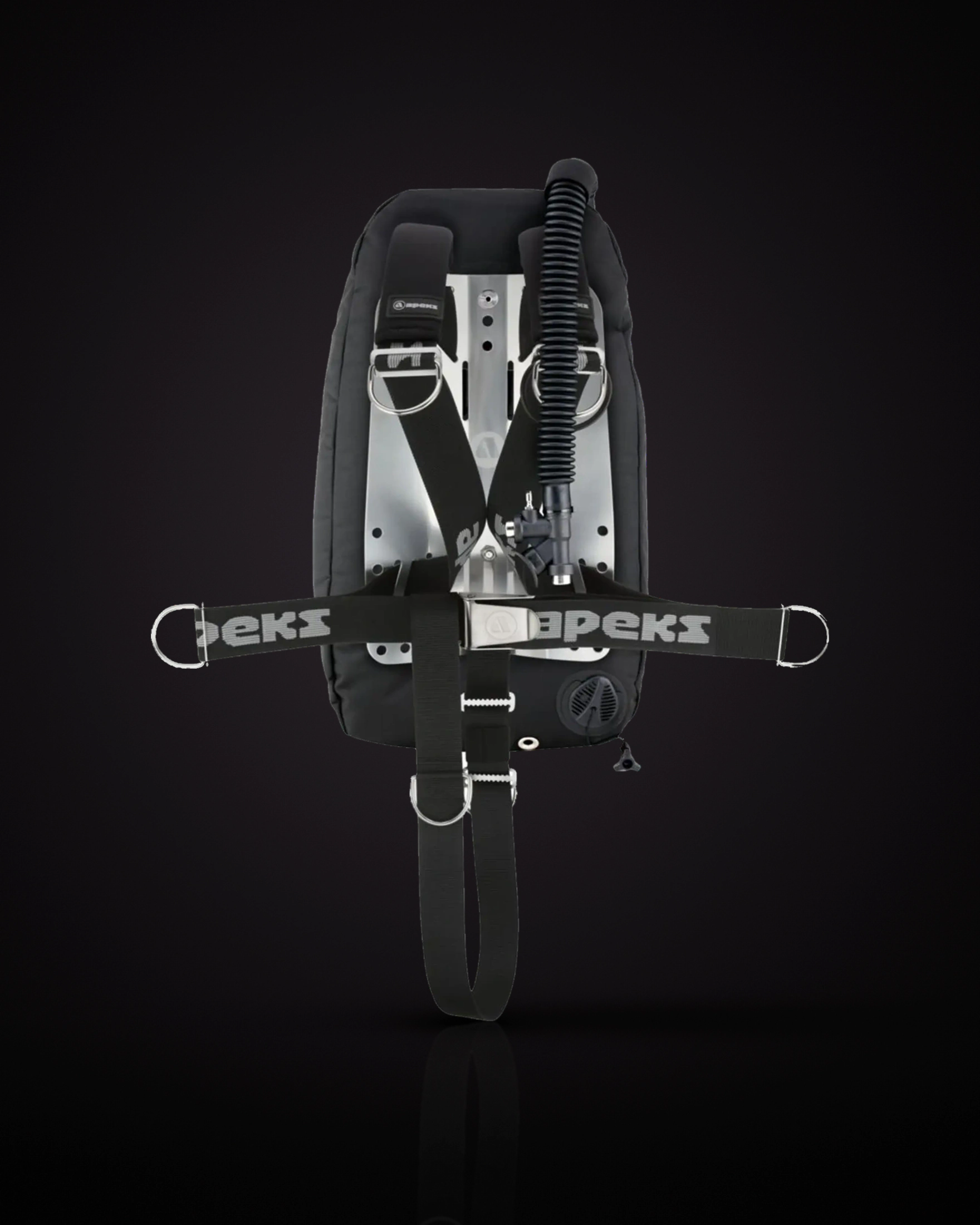

WTX-D30 Complete Kit
A 32 lbs (14.5 kg) wing, backplate and harness, assembled in one kit
The WTX-D30 Complete Kit pairs the WTX-D30 wing with a deluxe harness, fully assembled by Apeks, for seasoned technical divers and anyone looking to take their diving to the next level. Single-cylinder wings, often called donuts, began in technical diving but are becoming very popular with recreational divers. The continuous loop keeps it very stable underwater, and the wing gives 32 lbs (14.5 kg) of lift. Designed by Apeks and built in its own factory.
Ask for the price on LINE
Not chosen yet: Plate · choose first, or just ask in the chat
- 1Tap Order on LINE: our chat opens with your model, colour and size typed in. Just send.
- 2We check stock and confirm the total with shipping in the chat.
- 3Pay by transfer or PromptPay, send the slip, and we ship with a tracking number.
- Free shipping in Thailand from ฿2,000
- Authorised dealer · brand warranty
Highlights
32 lbs (14.5 kg) of lift, tough materials
The WTX-D30 wing gives 32 lbs (14.5 kg) / 142 N of lift. The outer shell is 1000D Armorshield Cordura over a 22 mil black urethane air cell, closed with a heavy-duty YKK #10 zip.
Inflator and dump valve out of the way
The K-style inflator has brass buttons, a low-profile 16" oval hose and a safety cable against hyper-extension, and sits off-centre so it does not interfere with your regulator first stage. A low-profile flat dump valve sits at the front, lower left, and two large drain grommets plus a centre mesh panel let water out.
Part of the WTX system
The wing is not permanently attached to the harness, so it mates up with the rest of Apeks' WTX harnesses, plates and accessories and can be configured to match the diving you do.
Who it is for
Great for
- Divers taking their diving to the next level with a backplate and wing
- Technical divers on a single cylinder
- Anyone who wants a complete, pre-assembled kit instead of buying parts one by one
Maybe not for
- Twin-cylinder divers: Apeks lists this as a single-cylinder wing
Specifications
- Assembly
- Supplied fully assembled
- In the box
- WTX-D30 wing + backplate (aluminium or stainless steel, as chosen) + deluxe webbed harness with stainless-steel hardware kit + 2 Griplock tank bands + 2 book screws · fully assembled
FAQ
Aluminium or stainless-steel plate: what is the difference?
Everything in the kit is the same except the backplate material. Apeks' pages do not list the weight of each, so ask us on LINE and we will help you choose.
How much lift does the wing give?
Apeks lists the WTX-D30 wing at 32 lbs (14.5 kg) / 142 N of lift.
I am not a technical diver. Is it for me?
Apeks says single-cylinder wings began in technical diving but are becoming very popular with recreational divers, and it made this kit for seasoned technical divers and anyone looking to take their diving to the next level. Never used a backplate and wing? Ask us on LINE before you order.
Do I need to assemble it?
No. Apeks supplies the kit fully assembled.
What is in the box?
The WTX-D30 wing, your chosen backplate, the deluxe webbed harness with stainless-steel hardware kit, 2 Griplock tank bands and 2 book screws.
